XQ-26 Latching Solenoid Valve Wifi Water Solenoid

Locking solenoid valve WiFi water solenoid coil is an innovative intelligent fluid control device, which combines the technology of locking solenoid valve with WiFi connection function, and introduces a convenient remote control experience to the field of fluid control. The coil adopts latching technology, which can maintain the current state when the power is off, and realize precise fluid control; at the same time, with the integrated WiFi module, users can realize remote control through mobile phones or other smart devices, and adjust fluid flow and operating status anytime and anywhere.
It is suitable for various fluid control scenarios, such as household, farmland irrigation, industrial production, etc. This device not only improves the convenience and accuracy of fluid control, but also enables remote monitoring and operation, which greatly improves the user experience. The innovative application of this locking solenoid valve WiFi water solenoid coil provides new possibilities for modern intelligent fluid control, enabling users to easily achieve intelligent, convenient and precise fluid control, thus meeting diverse control needs.
  • Specification

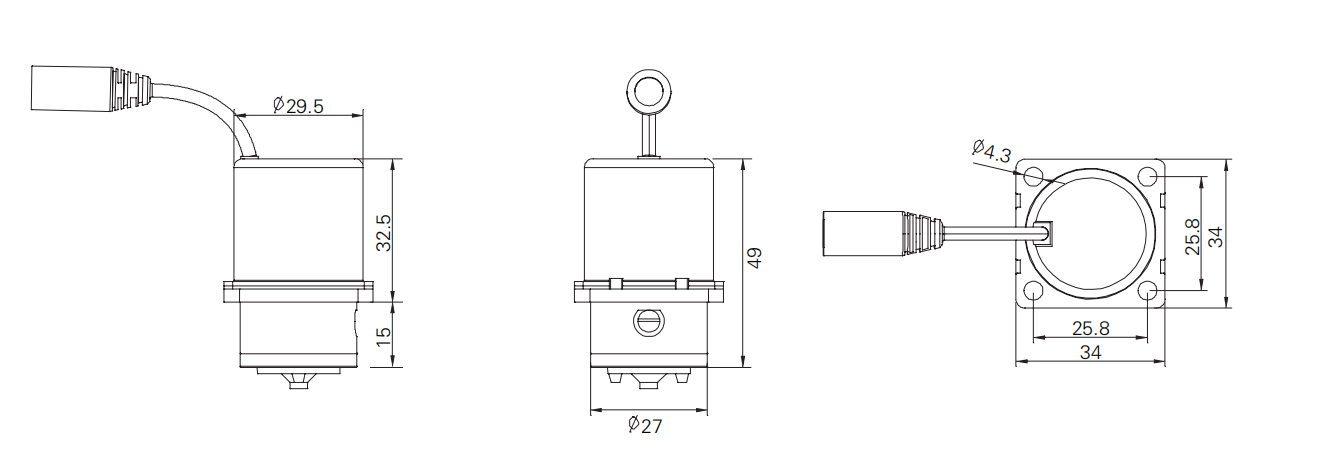

  • Drawing
  • Directions
Instruction
Rated voltage DC6V
Coil resistance 17Ω+0.5Ω(20℃)
Min Current 320mA
Pulse width 30-50ms
Operating pressure 0.02Mpa~0.8Mpa
Media temperature 1℃~75℃
Responding time open≤0.15s close≤0.5s

Performance test
The strength test 1.6MPa Static pressure Withstand voltage pressure 1.2Mpa/5min
No-load test Voltage V*3.6 pulse width 50ms Permissible limiting voltage V*1.15
High water pressure startup and closing At water pressure 0.8Mpa.voltage DC4.5V,pulse width 50ms,the solenoid valve can be started and closed normally
Low water pressure startup and closing At water pressure 002Mpa.voltage DC4.5V,pulse width 50ms the solenoid valve can be started and closed normal
Leakage upon high water pressure 1.2Mpa zero leakage
Leakage upon low water pressure 0.02Mpa leakage <0.1 mL/min
Electric strength Among the conductive part,mounting hole and nonconductive metal,it can withstand 500V/50Hz leakage current
Insulation resistance The resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500V> 20MΩ
Sealing test Static pressure Air High pressure 1MPa
Low pressure 0.02MPa
Cold water High pressure 1.2 MPa
Low pressure 0.02 MPa
Hot water High pressure 0.8 MPa
 Low pressure 0.02 MPa
Service life ≥Min 1,000,000 cycles (CJ/T194-2004) ≥1,000,000


Requirements of working environment
Temp.of working envlron mlent 1℃~+60℃ Permissible limiting pressure (water pressure) ≤1.2Mpa
Humidity of working environment 35%~90%RH(No condensation state) Mounting direction it is mounted in the vertical direction,
the inclination doesn’t exceed 60 degrees
Storage temp -5~+80℃(No freezing state)
Storage humidity 25%~95%RH(No condensation state)
