XQ-20B Low Voltage Locking Bistable Electric Water Solenoid Valve Coil

The Low-Pressure Lockout Bistable Electric Water Solenoid Coil is an advanced fluid control device that combines low-pressure lockout and bistable functions to bring performance to the fluid control field. The coil adopts advanced electric technology, which can work stably under low-pressure conditions and realize efficient fluid control. At the same time, its bistable design enables it to maintain the original state after power failure, which improves the reliability of the system.
The coil is suitable for various low-pressure fluid control scenarios, such as household water, farmland irrigation, etc., and can achieve precise flow control and regulation. Its advanced technology ensures the stability and precision of fluid control, thus improving the efficiency of resource utilization. The innovative application of this low-voltage locking bistable electric water solenoid valve coil not only meets the diverse needs of fluid control, but also provides a reliable solution to fluid control problems in low-pressure environments, and contributes to improving the technical level of the fluid control field. made positive contributions.
  • Specification

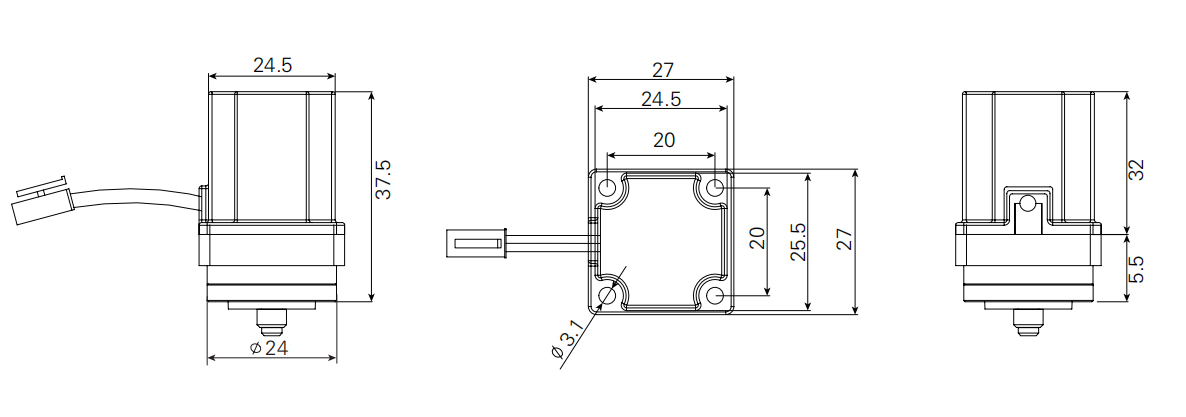

  • Drawing
  • Directions
Instruction
Rated voltage DC6V
Coil resistance 17Ω+0.5Ω(20℃)
Min Current 320mA
Pulse width 30-50ms
Operating pressure 0.02Mpa~0.8Mpa
Media temperature 1℃~75℃
Responding time open≤0.15s close≤0.5s

Performance test
The strength test 1.6MPa Static pressure Withstand voltage pressure 1.2Mpa/5min
No-load test Voltage V*3.6 pulse width 50ms Permissible limiting voltage V*1.15
High water pressure startup and closing At water pressure 0.8Mpa.voltage DC4.5V,pulse width 50ms,the solenoid valve can be started and closed normally
Low water pressure startup and closing At water pressure 002Mpa.voltage DC4.5V,pulse width 50ms the solenoid valve can be started and closed normal
Leakage upon high water pressure 1.2Mpa zero leakage
Leakage upon low water pressure 0.02Mpa leakage <0.1 mL/min
Electric strength Among the conductive part,mounting hole and nonconductive metal,it can withstand 500V/50Hz leakage current
Insulation resistance The resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500V> 20MΩ
Sealing test Static pressure Air High pressure 1MPa
Low pressure 0.02MPa
Cold water High pressure 1.2 MPa
Low pressure 0.02 MPa
Hot water High pressure 0.8 MPa
 Low pressure 0.02 MPa
Service life ≥Min 1,000,000 cycles (CJ/T194-2004) ≥1,000,000


Requirements of working environment
Temp.of working envlron mlent 1℃~+60℃ Permissible limiting pressure (water pressure) ≤1.2Mpa
Humidity of working environment 35%~90%RH(No condensation state) Mounting direction it is mounted in the vertical direction,
the inclination doesn’t exceed 60 degrees
Storage temp -5~+80℃(No freezing state)
Storage humidity 25%~95%RH(No condensation state)
