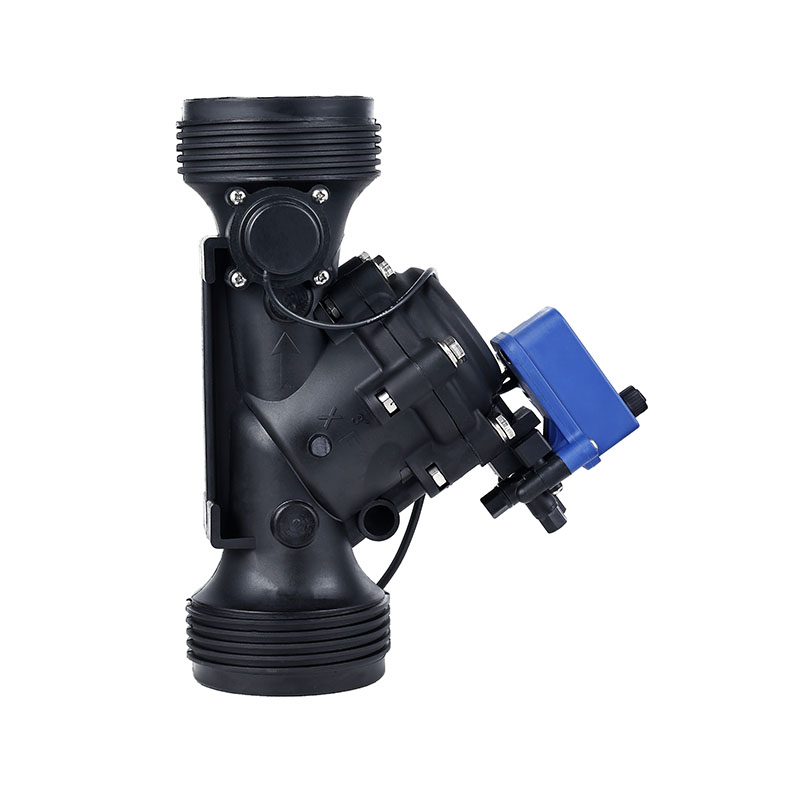

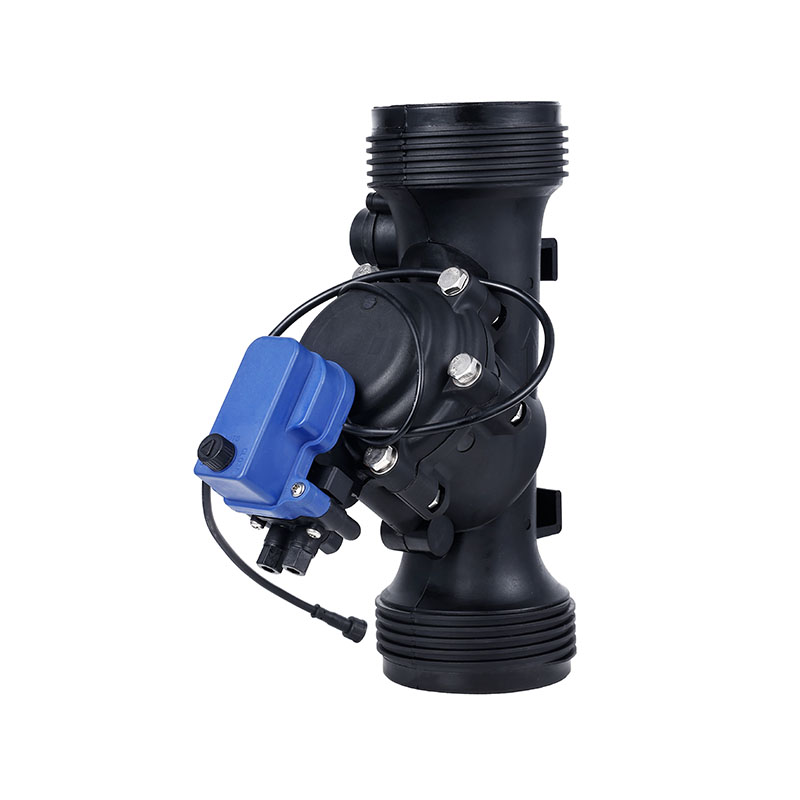

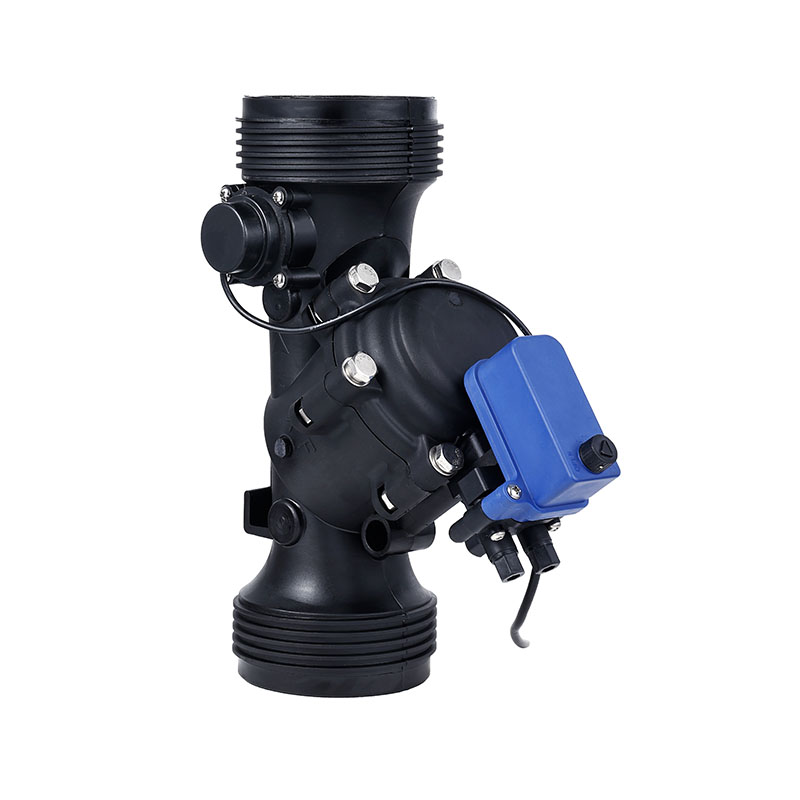

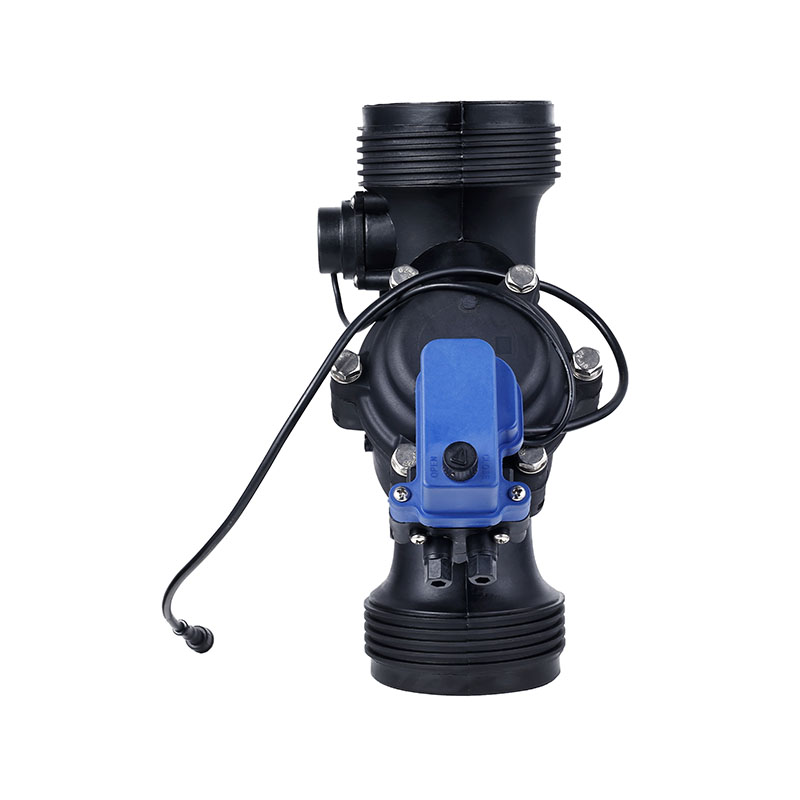

PSV-90 3 Inch Irrigation Solenoid Valve (Male Thread)

This 3-inch irrigation solenoid valve (male thread) is ideally designed for large farm or commercial irrigation systems. Its powerful water flow control capabilities and reliable performance make it suitable for a variety of environments and needs. The solenoid valve is made of durable materials, has long-term stable working performance, and can withstand high pressure and frequent use. The external thread design makes installation quick and easy and facilitates connection to existing pipes. Whether used for large-scale farm irrigation or industrial use, this solenoid valve provides reliable water flow control to ensure efficient operation of the irrigation system. Its precise design and stable performance make it an indispensable and critical component in agricultural and commercial irrigation systems.

Backlist
  • Specification

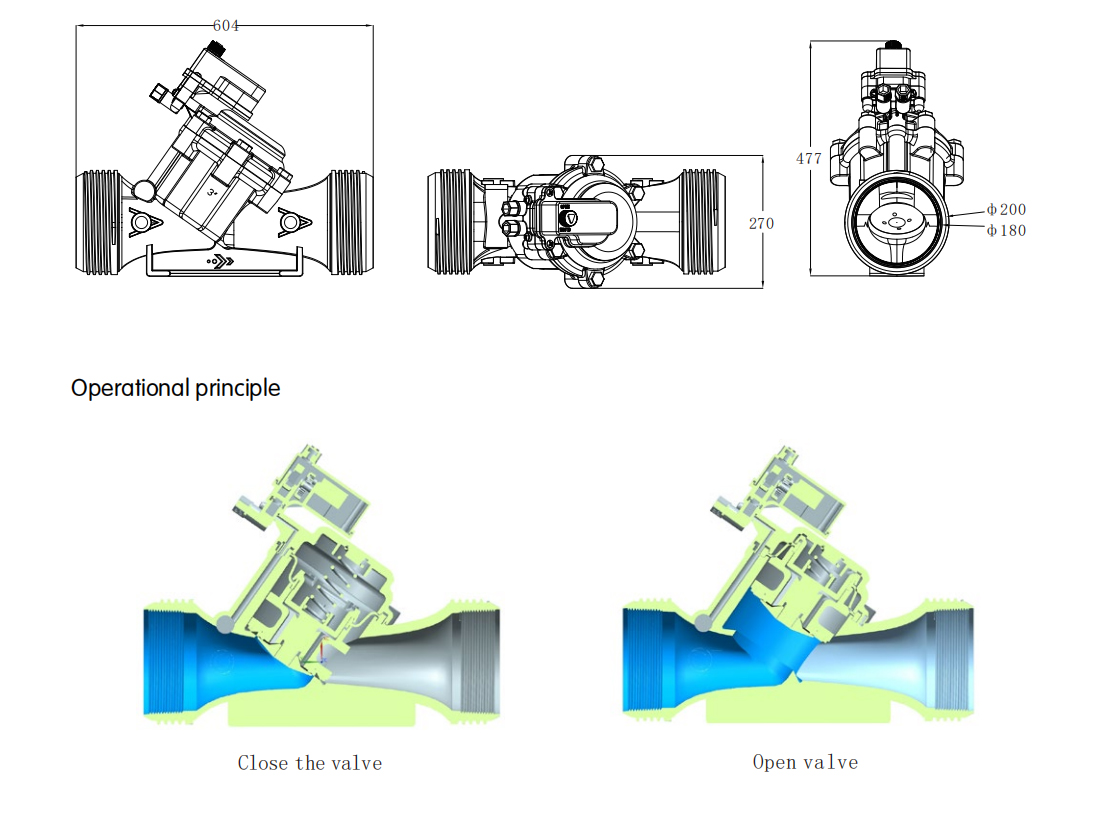

  • Drawing
  • Directions

1. The Y-shaped valve is designed with a full flow channel, which has low water loss, high flow rate, and saves energy consumption.
2. Built-in pipeline type three-channel hydraulic control, high reliability, anti-clogging performance, no external pipelines, high durability, built-in filter screen easy to clean, simple maintenance, and no vulnerable parts.
3. The S-type valve core diaphragm adopts EPMD+composite fiber, which has high-pressure resistance, weather resistance, high-temperature aging resistance, and low-temperature resistance.
4. The main material is made of PA6+30% reinforced fibers, with a high-pressure water resistance of over 2. 5Mpa, UV protection high-temperature exposure, and unchanged performance.
5. The controller adopts two modes, manual/automatic, with a built-in locking mechanism and micro motor gear drive, high reliability, detachable waterproof structure, simple and convenient maintenance, and greatly extended service life, reaching more than 10 years.

Caliber 3"
Control voltage AC/DC 12-24V current: < 1A
Pulse voltage: DC 3-12V
Pulse width: 300-500ms
Pulse current: 1.5A
Economic flow 20-60 tons/hour
Minimum working pressure 0.03Mpa
Maximum working pressure 1.0Mpa
Ultimate pressure <2.5Mpa
Installation environment temperature -30℃-70℃
Working medium temperature 0.5℃-60℃
Feedback on valve working status Switch signal output
Flow (frequency) pressure signal (analog voltage) output
Electrical interface waterproof connector/two-core cable.
