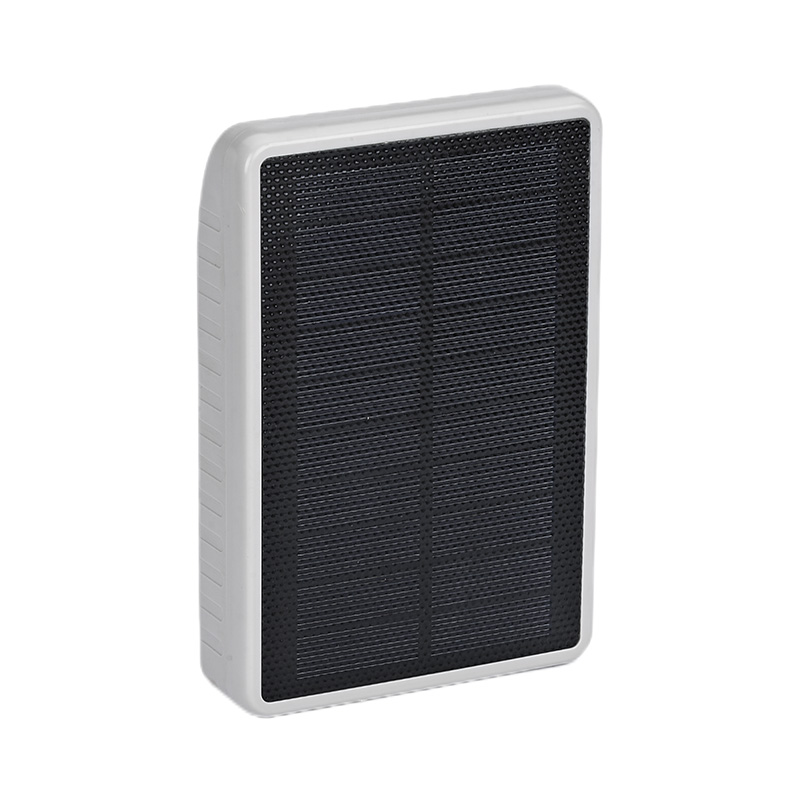

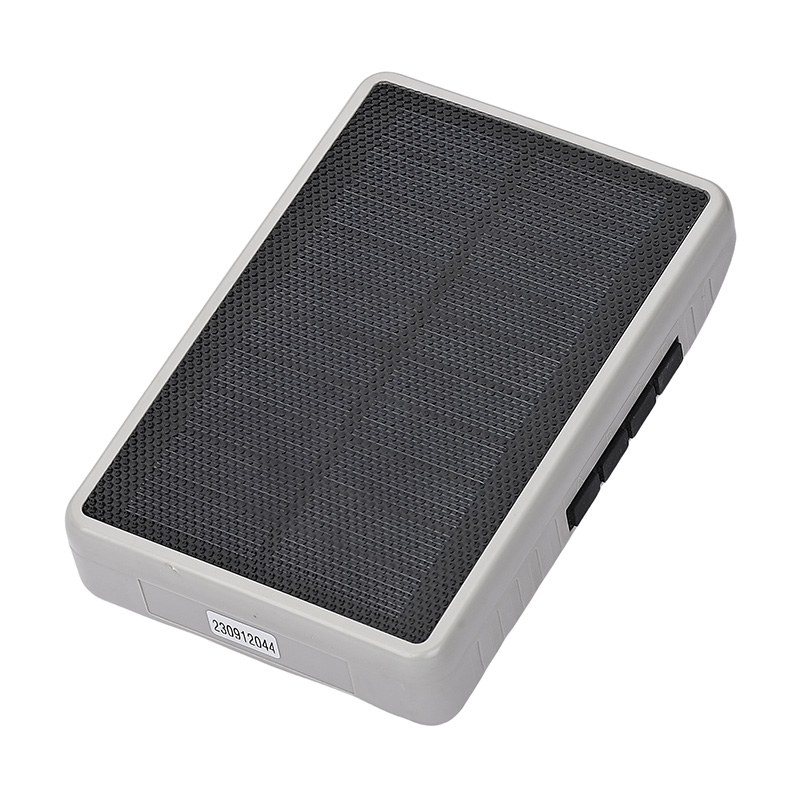

SVC1200 Wireless Smart Valve

The wireless smart valve is an innovative irrigation system component that enables remote control and intelligent management of water flow through wireless connection and intelligent control technology. The valve does not rely on traditional wired cable connections, but connects to a smart controller or mobile phone app via a wireless network to conveniently adjust the water flow and timing of the irrigation system. With preset programs and timing functions, users can set irrigation plans according to needs, and monitor and adjust irrigation conditions in real time to achieve flexible and efficient water resources management. Its intelligent functions also include automatically detecting environmental humidity, soil moisture, weather forecast and other information to intelligently adjust irrigation strategies to improve irrigation effects and water-saving efficiency. Wireless smart valves are widely used in farmland irrigation, landscaping, urban landscape and other occasions to provide users with convenient and intelligent irrigation solutions while promoting the rational utilization and protection of water resources.
  • Specification

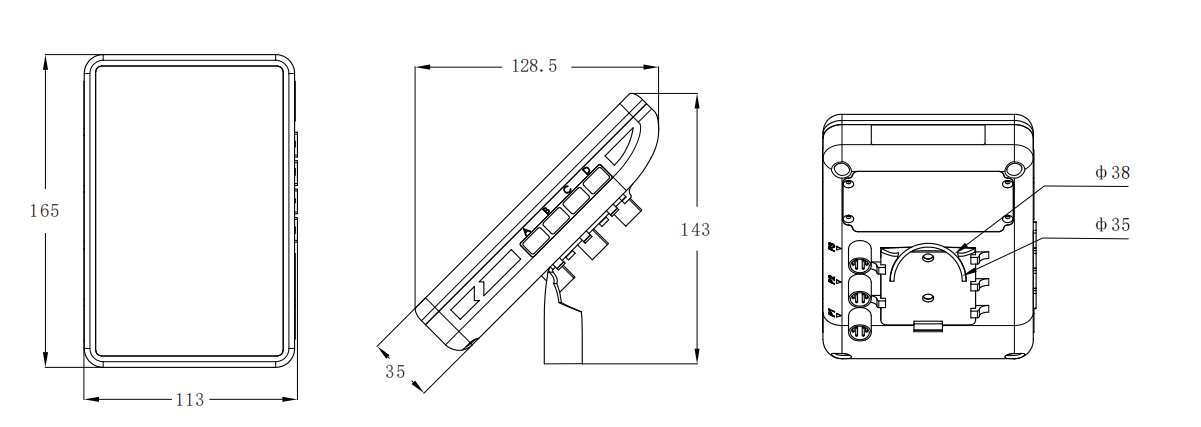

  • Drawing
  • Directions

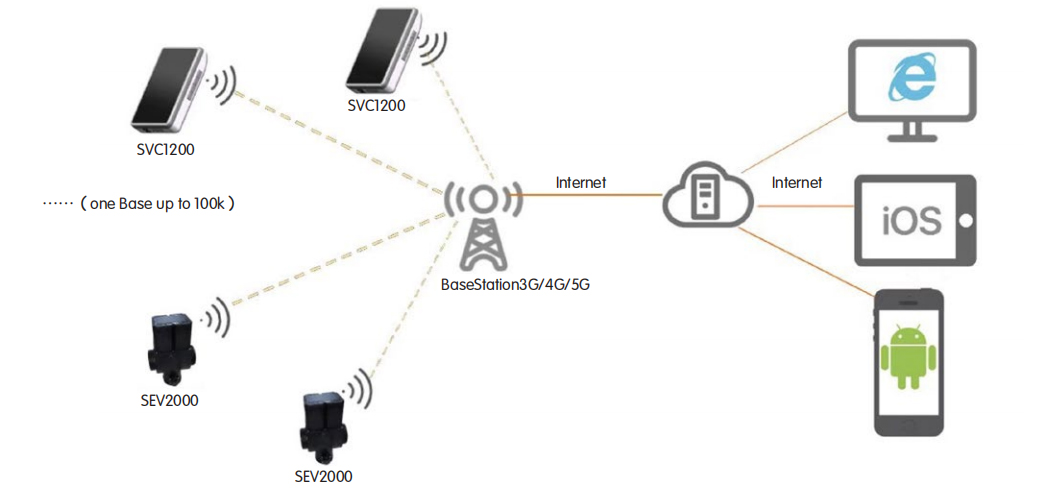

1.Adopt 2/3/4/5G communication, receive control commands from the client or computer, execute corresponding control valve output strategies, collect real-time valve status, and trigger reporting.
2. Control pulse valves, solenoid valves, electric valves, electric butterfly valves, double sided electric ball valves, etc., using two voltage levels of 3. 7V/12V to control the inlet valve, adapting to the control of various valves on the market.

Source 3.7VDC@6Ah (Expansion+3Ah)
Power Dissipation Sleep power consumption: 3.7v@6uA :
Power consumption during irrigation
period: 3.7V@3mA ; Can run continu-
ously for more than 2 months at full
charge
Work Environment -30℃-70℃,5%RH~95%RH
Electromagnetic Interference E2 level
Waterproof level Using 16MB external memory to store
data, no data loss during power outage
Data Storage Using 16MB external memory to store
data, no data loss during power outage
2 way control interface P1/P2,3.7v/
12v@2A Output, supporting at least 3
10 states per channel
Control Interface 4 buttons for manual control of valves,
with on/off function
Manual Control Flow pressure sensor
Collection Interface Interface P3, one analog signal acquisi-
tion 0-2.5V, two digital pulse acquisi-
tion (or 10 status)
4G LTE CAT1
Protocol Standard MOTTV3.1.1,custom TOPIC+LTCMD interface for easy and fast access to software platform
Size 165*111*35mm
Weight 300g
