XQ-18 Self-Locking Pulse Solenoid Valve Coil

Self-locking pulse solenoid valve coil is an innovative water control device, which combines self-locking function and pulse technology, which has brought important breakthroughs in the field of modern fluid control. The coil adopts advanced self-locking electromagnetic technology, which can maintain the original state after the power is disconnected to achieve efficient control. At the same time, it integrates pulse technology to achieve precise liquid flow control, thereby minimizing the waste of energy and resources. Its unique design can be applied to various liquid control scenarios, providing a reliable and intelligent solution for industry, agriculture, life, and other fields. It not only effectively improves the accuracy and efficiency of fluid control, but also promotes the conservation and sustainable utilization of resources. The innovative application of this self-locking pulse solenoid valve coil leads the development direction of fluid control technology and provides strong support for future intelligent fluid control.
  • Specification

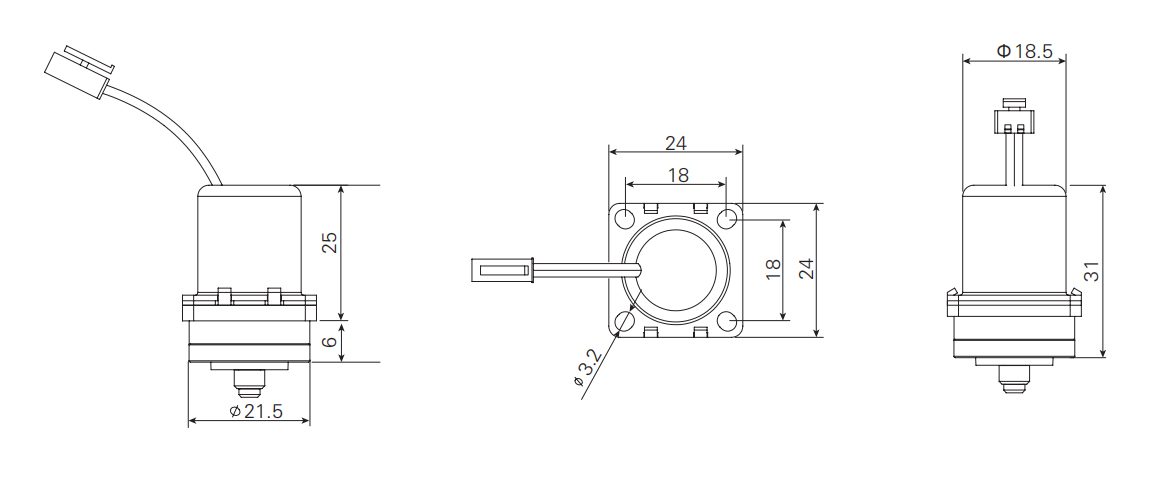

  • Drawing
  • Directions
Instruction
Rated voltage DC6V
Coil resistance 17Ω+0.5Ω(20℃)
Min Current 320mA
Pulse width 30-50ms
Operating pressure 0.02Mpa~0.8Mpa
Media temperature 1℃~75℃
Responding time open≤0.15s close≤0.5s

Performance test
The strength test 1.6MPa Static pressure Withstand voltage pressure 1.2Mpa/5min
No-load test Voltage V*3.6 pulse width 50ms Permissible limiting voltage V*1.15
High water pressure startup and closing At water pressure 0.8Mpa.voltage DC4.5V,pulse width 50ms,the solenoid valve can be started and closed normally
Low water pressure startup and closing At water pressure 002Mpa.voltage DC4.5V,pulse width 50ms the solenoid valve can be started and closed normal
Leakage upon high water pressure 1.2Mpa zero leakage
Leakage upon low water pressure 0.02Mpa leakage <0.1 mL/min
Electric strength Among the conductive part,mounting hole and nonconductive metal,it can withstand 500V/50Hz leakage current
Insulation resistance The resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500V> 20MΩ
Sealing test Static pressure Air High pressure 1MPa
Low pressure 0.02MPa
Cold water High pressure 1.2 MPa
Low pressure 0.02 MPa
Hot water High pressure 0.8 MPa
 Low pressure 0.02 MPa
Service life ≥Min 1,000,000 cycles (CJ/T194-2004) ≥1,000,000


Requirements of working environment
Temp.of working envlron mlent 1℃~+60℃ Permissible limiting pressure (water pressure) ≤1.2Mpa
Humidity of working environment 35%~90%RH(No condensation state) Mounting direction it is mounted in the vertical direction,
the inclination doesn’t exceed 60 degrees
Storage temp -5~+80℃(No freezing state)
Storage humidity 25%~95%RH(No condensation state)
