Wholesale PSV-S90L Full-Way 3-Inch Irrigation Solenoid Valve

Home / Product / Irrigation Solenoid Valve / 3 Inch Irrigation Solenoid Valve / PSV-S90L Full-Way 3-Inch Irrigation Solenoid Valve
  • PSV-S90L Full-Way 3-Inch Irrigation Solenoid Valve

PSV-S90L Full-Way 3-Inch Irrigation Solenoid Valve

The all-way 3-inch irrigation solenoid valve is a key component used in large-scale irrigation systems. This solenoid valve has a valve body with a diameter of 3 inches and adopts an all-pass design with an unobstructed channel to achieve the smooth passage of large-flow water. Its simple and efficient structural design can ensure fast and stable water flow control in the irrigation system. Through electromagnetic control, the valve can be opened and closed accurately to meet different irrigation needs and improve the flexibility and intelligence of the irrigation system. The durable construction and reliable performance make it suitable for long-term use in various environmental conditions, ensuring stable operation of the irrigation system. The full-pass 3-inch irrigation solenoid valve is widely used in farmland irrigation, landscape gardens, golf courses and other occasions that require large-flow water flow control.
Backlist
  • Specification

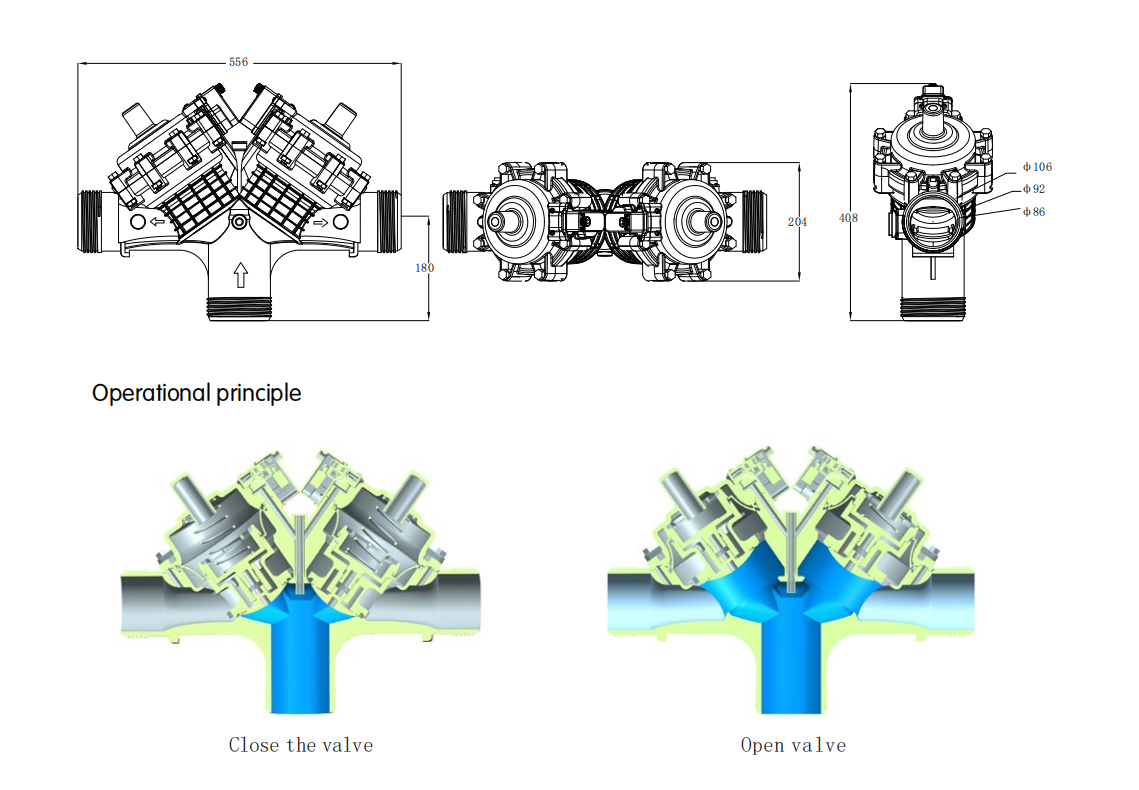

  • Drawing
  • Directions

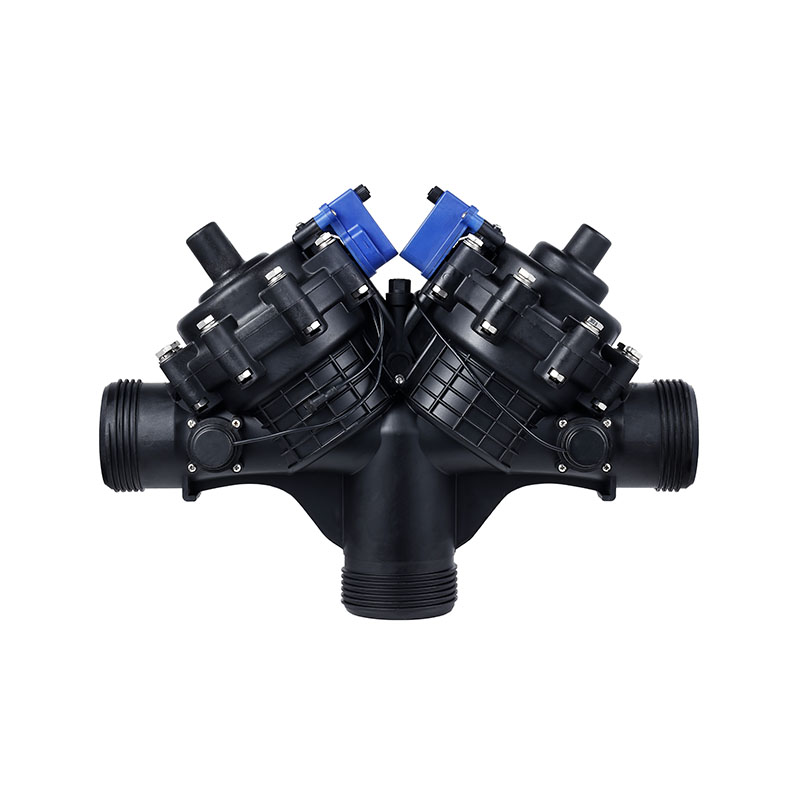

1. The Y-shaped valve is designed with a full flow channel, which has low water loss, high flow rate, and saves energy consumption.
2. Built-in pipeline type three-channel hydraulic control, high reliability, anti-clogging performance, no external pipelines, high durability, built-in filter screen easy to clean, simple maintenance, and no vulnerable parts.
3. The S-type valve core diaphragm adopts EPMD+composite fiber, which has high-pressure resistance, weather resistance, high-temperature aging resistance, and low-temperature resistance.
4. The main material is made of PA6+30% reinforced fibers, with a high-pressure water resistance of over 2. 5Mpa, UV protection high-temperature exposure, and unchanged performance.
5. The controller adopts two modes, manual/automatic, with a built-in locking mechanism and micro motor gear drive, high reliability, detachable waterproof structure, simple and convenient maintenance, and greatly extended service life, reaching more than 10 years.

Caliber 3"-LS
Control voltage AC/DC 12-24V current: < 1A
Pulse voltage: DC 3-12V
Pulse width: 300-500ms
Pulse current: 1.5A
Economic flow 50-80 tons/hour
Minimum working pressure 0.03Mpa
Maximum working pressure 1.0Mpa
Ultimate pressure <2.5Mpa
Installation environment temperature -30℃-70℃
Working medium temperature 0.5℃-60℃
Feedback on valve working status Switch signal output
Flow (frequency) pressure signal (analog voltage) output
Electrical interface waterproof connector/two-core cable.
