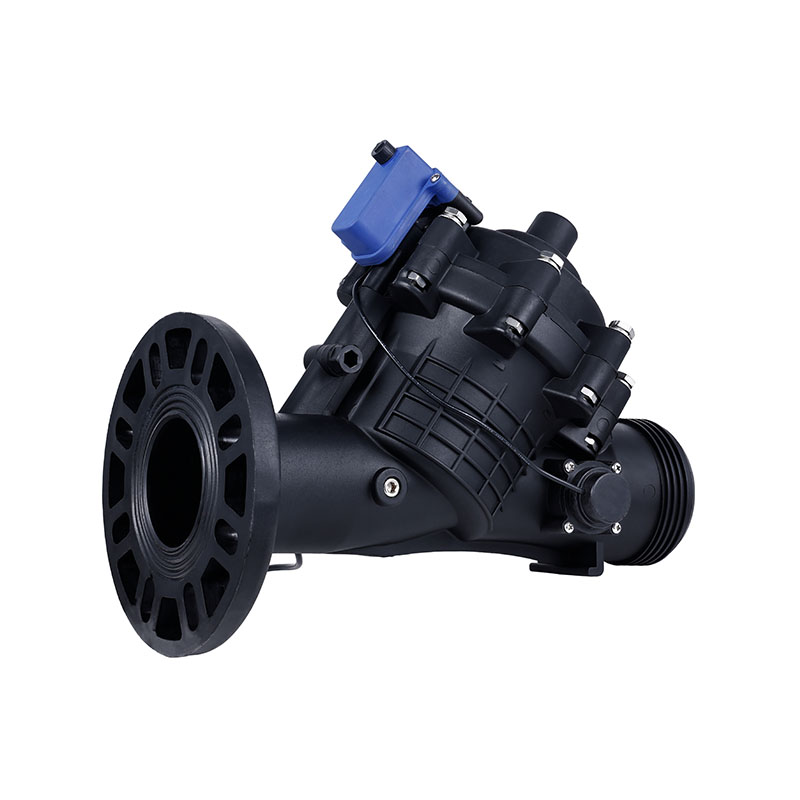

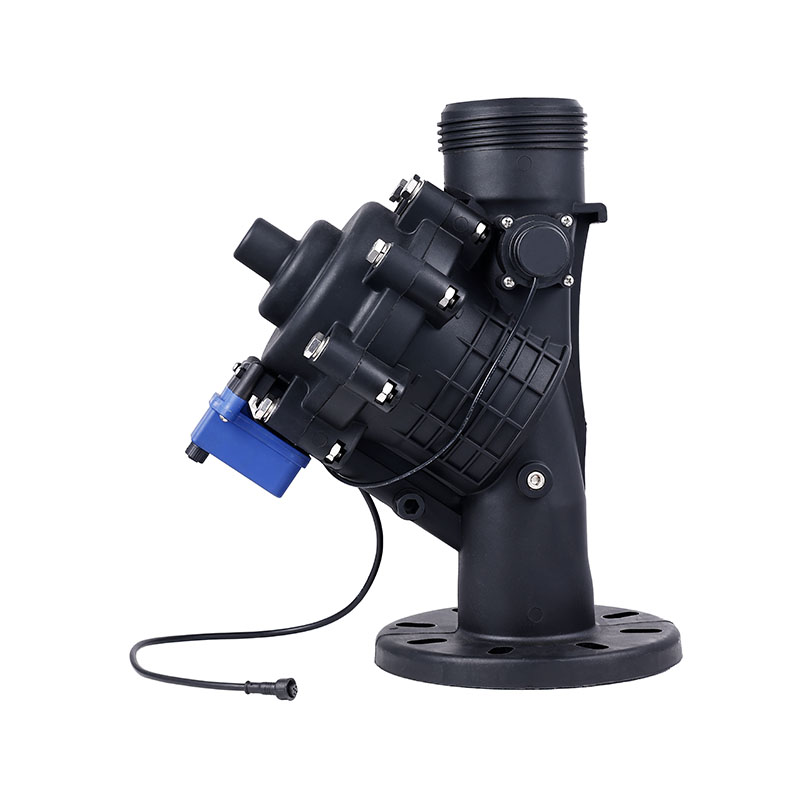

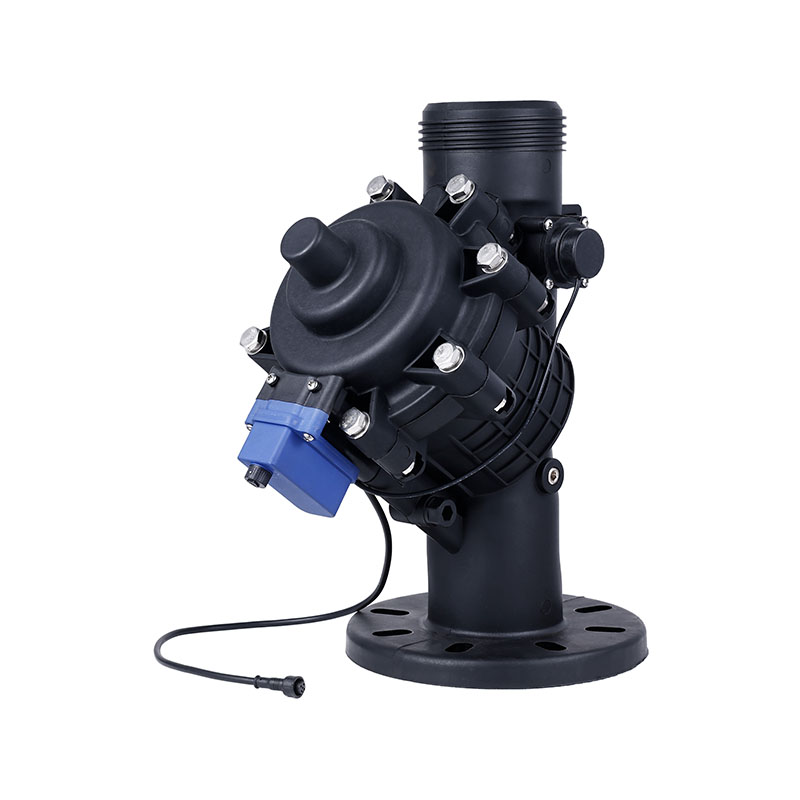

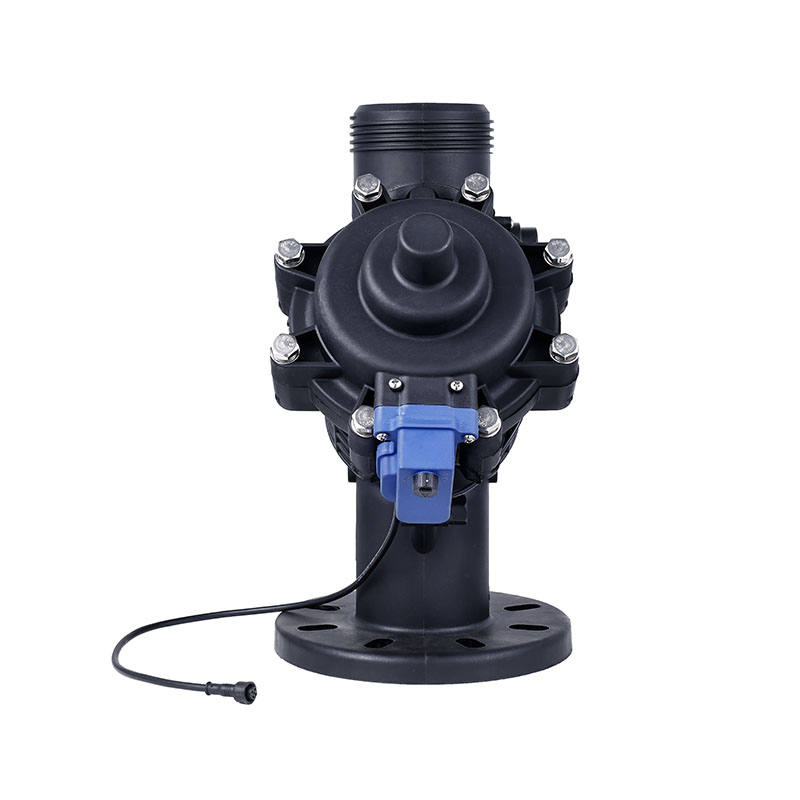

PSV-90L 3 Inch Irrigation Solenoid Valve (Matched Flange With One Terminal)

1. The Y-shaped valve is designed with a full flow channel, which has low water loss, high flow rate, and saves energy consumption.
2. Built-in pipeline type three-channel hydraulic control, high reliability, anti-clogging performance, no external pipelines, high durability, built-in filter screen easy to clean, simple maintenance, and no vulnerable parts.
3. The S-type valve core diaphragm adopts EPMD+composite fiber, which has high-pressure resistance, weather resistance, high-temperature aging resistance, and low-temperature resistance.
4. The main material is made of PA6+30% reinforced fibers, with a high-pressure water resistance of over 2. 5Mpa, UV protection high-temperature exposure, and unchanged performance.
5. The controller adopts two modes, manual/automatic, with a built-in locking mechanism and micro motor gear drive, high reliability, detachable waterproof structure, simple and convenient maintenance, and greatly extended service life, reaching more than 10 years.

Caliber	3"
Control voltage	AC/DC 12-24V current: < 1A
	Pulse voltage: DC 3-12V
	Pulse width: 300-500ms
	Pulse current: 1.5A
Economic flow	50-100 tons/hour
Minimum working pressure	0.03Mpa
Maximum working pressure	1.0Mpa
Ultimate pressure	<2.5Mpa
Installation environment temperature	-30℃-70℃
Working medium temperature	0.5℃-60℃
Feedback on valve working status	Switch signal output
	Flow (frequency) pressure signal (analog voltage) output
Electrical interface	waterproof connector/two-core cable
