XQ-30 Self-Locking Coil Solenoid Valve Head Coil

The self-locking coil solenoid valve head coil is a key piece of equipment with multiple advantages. Firstly, its self-locking function means that once the power supply is interrupted, the valve can still maintain its original position, ensuring the stability of fluid control, thereby reducing fluid leakage and waste. Second, this coil can effectively reduce energy and power consumption, since it does not require a constant power supply to maintain the valve state. This not only helps save costs, but also benefits the environment.
Another significant benefit is the ease and reliability of its operation. The automatic nature of the self-locking coil solenoid valve head coil reduces the need for manual operation and improves the precision and consistency of fluid control. This makes it highly reliable in a wide variety of applications, from the home to the industrial. To sum up, the self-locking coil solenoid valve head coil brings benefits to modern fluid control systems by optimizing fluid control, reducing energy consumption and improving operational reliability.
  • Specification

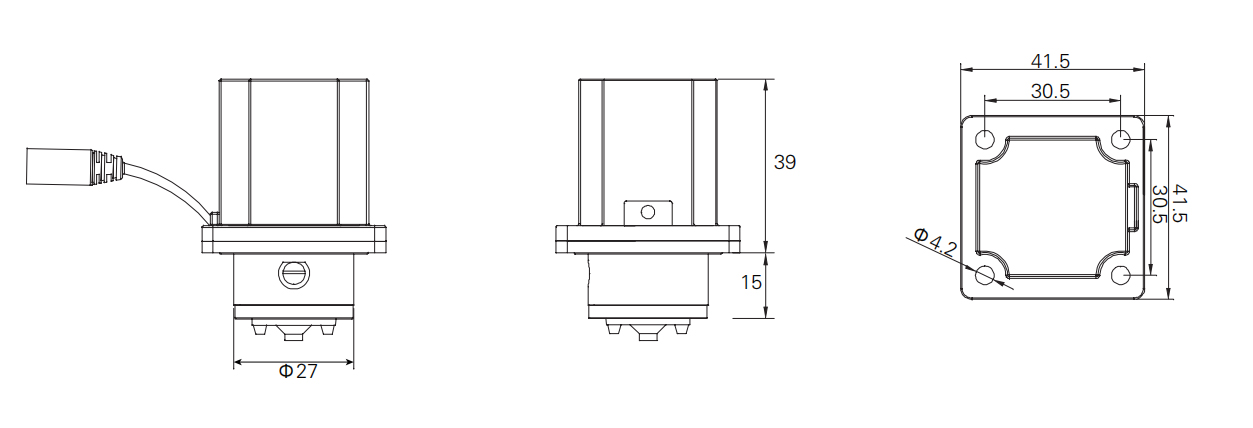

  • Drawing
  • Directions
Instruction
Rated voltage DC6V
Coil resistance 17Ω+0.5Ω(20℃)
Min Current 320mA
Pulse width 30-50ms
Operating pressure 0.02Mpa~0.8Mpa
Media temperature 1℃~75℃
Responding time open≤0.15s close≤0.5s

Performance test
The strength test 1.6MPa Static pressure Withstand voltage pressure 1.2Mpa/5min
No-load test Voltage V*3.6 pulse width 50ms Permissible limiting voltage V*1.15
High water pressure startup and closing At water pressure 0.8Mpa.voltage DC4.5V,pulse width 50ms,the solenoid valve can be started and closed normally
Low water pressure startup and closing At water pressure 002Mpa.voltage DC4.5V,pulse width 50ms the solenoid valve can be started and closed normal
Leakage upon high water pressure 1.2Mpa zero leakage
Leakage upon low water pressure 0.02Mpa leakage <0.1 mL/min
Electric strength Among the conductive part,mounting hole and nonconductive metal,it can withstand 500V/50Hz leakage current
Insulation resistance The resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500V> 20MΩ
Sealing test Static pressure Air High pressure 1MPa
Low pressure 0.02MPa
Cold water High pressure 1.2 MPa
Low pressure 0.02 MPa
Hot water High pressure 0.8 MPa
 Low pressure 0.02 MPa
Service life ≥Min 1,000,000 cycles (CJ/T194-2004) ≥1,000,000


Requirements of working environment
Temp.of working envlron mlent 1℃~+60℃ Permissible limiting pressure (water pressure) ≤1.2Mpa
Humidity of working environment 35%~90%RH(No condensation state) Mounting direction it is mounted in the vertical direction,
the inclination doesn’t exceed 60 degrees
Storage temp -5~+80℃(No freezing state)
Storage humidity 25%~95%RH(No condensation state)
